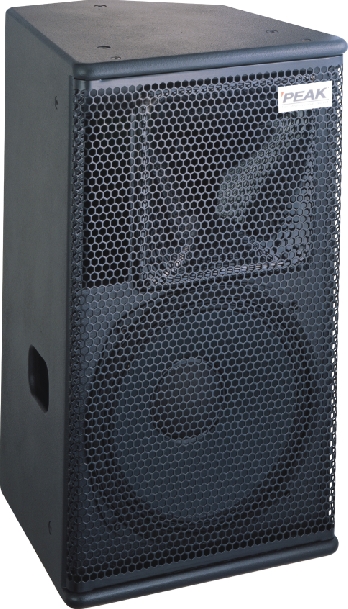

PS-12

单12"两分频全音域音箱

 频率响应:50-20KHz
 标称功率:250W
 标称阻抗:8 ohm
 灵敏度:95dB

The PS-12 is a 2-way full range system in a trapezoidal, computer optimized enclosure. Loudspeaker compliment consists of an 12" LF woofer in a ported sub-enclosure, and a single 44Ti" driver mounted on a 50-100°× 50° rotatable waveguide. A factory optimized internal crossover is installed to ensure balanced output between the HF and LF components. The enclosure is constructed of durable 18mm void-free MDF laminate, dadoed for strength and durability. Integrated eye bolt receptacles are located on the top and sides to facilitate installation. Perforated steel is employed for frontal protection of the loudspeaker compliment.



使用范围

会议室、宴会厅、教室、演艺厅、的士高、慢遥吧、卡拉OK、礼堂、教堂、俱乐部、会



功能与规格参数

频率响应

50-20KHz

标称功率

250W

标称阻抗

8 ohm

灵敏度

95dB

散射角度

50-100°×55°

箱体尺寸

640×376×370mm

净重

27kg
