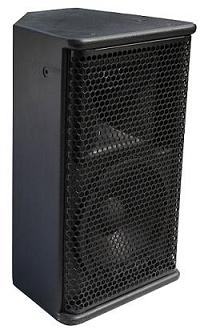

PS-8

单8"两分频全音域音箱
 频率响应:50-20KHz
 标称功率:180W
 标称阻抗:8 ohm
 灵敏度:95dB

The PS-8 is a 2-way full range system in a trapezoidal, computer optimized enclosure. Loud speaker complement consists of an 8" LF woofer in a ported sub-enclosure, and a single 1"compression driver mounted on a 50-100°×55°horn. A factory optimized internal crossover is installed to ensure balanced output between the HF and LF components. The enclosure is constructed of durable 13-ply void-free birch laminate, dadoed for strength and durability. Integrated eyebolt receptacles are located on the top of the system to facilitate a vertical installation. Perforated steel is employed for frontal protection of the loud speaker complement.



功能与规格参数

频率响应

50-20KHz

标称功率

180W

标称阻抗

8 ohm

灵敏度

95dB

散射角度

50-100°×55°

箱体尺寸

437×265×252mm

净重

10.5kg
