BF全音域音箱系列 当前位置: 首页 > 产品中心 > BF全音域音箱系列

F-10

BF-12

BF-15

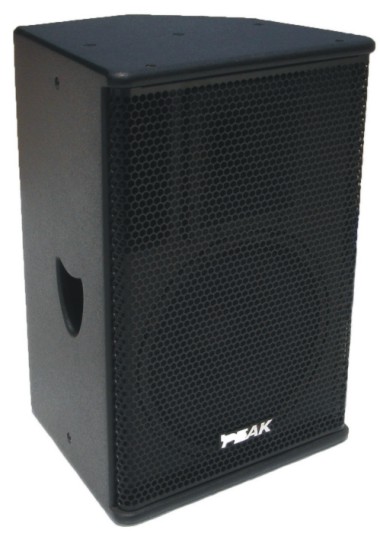

F-10

单10"两分频全音域音箱
 频率响应:65-20KHz(±3dB)
标称功率:300W
标称阻抗:8 ohm
灵敏度:96dB

The F-10 is a 2-way full range system in a trapezoidal, computer optimized enclosure. Loud speaker complement consists of an 12" LF woofer in a ported sub-enclosure, and a single 1.5"compression driver mounted on a 90o×50o horn. A factory optimized internal crossover is installed to ensure balanced output between the HF and LF components. The enclosure is constructed of durable 13-ply void-free birch laminate, dadoed for strength and durability. Integrated eyebolt receptacles are located on the top of the system to facilitate a vertical installation. Perforated steel is employed for frontal protection of the loud speaker complement.



功能与规格参数

频率响应

65-20KHz±3dB

标称功率

300W

标称阻抗

8 ohm

灵敏度

96dB

散射角度

90°×50°

箱体尺寸

317×351×500mm

净重

17kg
