F同轴全音域音箱系列 当前位置: 首页 > 产品中心 > F同轴全音域音箱系列

H-8

F-12

F-15

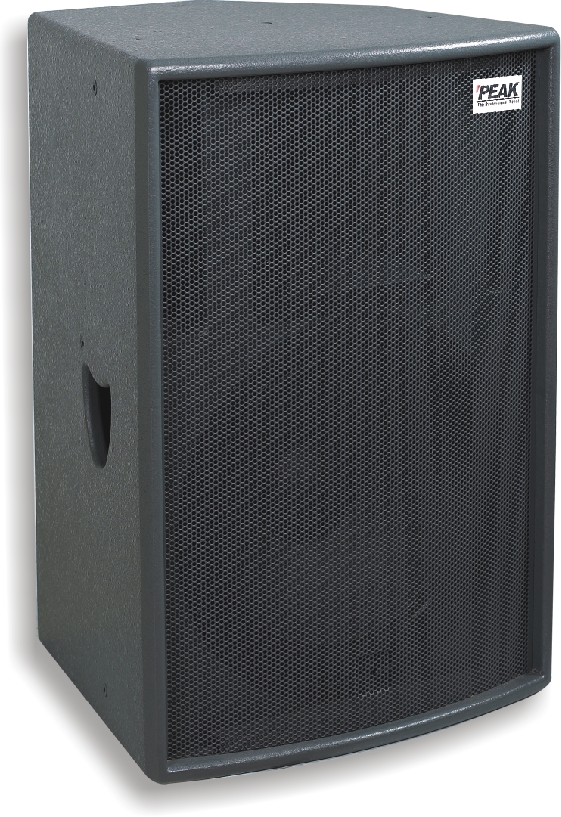

F-15

单15〞两分频全音域音箱
 频率响应:55-18KHz(±3dB)
 额定功率:400W(1600W)
 额定阻抗:8 ohm
 灵敏度:99dB

 使用范围

会议室、宴会厅、教室、演艺厅、的士高、慢遥吧、卡拉OK、礼堂、教堂、俱乐部、会所



The F-15 is a 2-way full range system in a trapezoidal, computer optimized enclosure. Loud speaker complement consists of an 15" LF woofer in a ported sub-enclosure, and a single 1.4"compression driver mounted on a 80°× 50° horn. A factory optimized internal crossover is installed to ensure balanced output between the HF and LF components. The enclosure is constructed of durable 13-ply void-free birch laminate, dadoed for strength and durability. Integrated eyebolt ceptacles are located on the top of the system to facilitate a vertical installation. Perforated steel is employed for frontal protection of the loud speaker complement.



功能与规格参数

频率响应

55-18KHz±3dB

标称功率

400W1600W

标称阻抗

8 ohm

灵敏度

99dB

散射角度

80°×50°

箱体尺寸

690×471×443mm

净重

32.5kg
